ECS pipeline 구성

ECS 생성
CodePipeline 구성









ECS 생성



먼저 간단한 스프링부트 프로젝트를 만든다



index.java

package com.example.wsitest;


import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.web.bind.annotation.*;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.CorsRegistry;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;

@RestController
@RequestMapping("/")
public class index implements WebMvcConfigurer {

    @Override
    public void addCorsMappings(CorsRegistry registry) {
        registry.addMapping("/**")
                .allowedOrigins("*") // 프론트엔드 도메인
                .allowedMethods("GET", "POST", "PUT", "DELETE") // 허용할 HTTP 메서드
                .allowedHeaders("*"); // 모든 헤더 허용
    }

    @PostMapping("/data")
    public String receiveData(@RequestBody String data) {
        // 데이터를 받아와서 원하는 처리를 수행합니다.
        System.out.println("Received data from frontend: " + data);
        return "{\"message\": \"Hello from backend!\"}";
    }
}



dockerfile

FROM openjdk:17-jdk-alpine AS build

WORKDIR /app

COPY . .

RUN chmod +x ./gradlew
RUN ./gradlew clean build -x test

FROM openjdk:17-jdk-alpine

WORKDIR /app

COPY --from=build /app/build/libs/*.jar /app/app.jar

CMD ["java", "-jar", "/app/app.jar"]



ecs를 먼저 생성하기 전에 ALB를 생성 해줄것이다





ALB생성

만약 blue/green으로 배포를 할 경우에는 대상그룹이 2개가 있어야 한다



fargate형식으로 배포할 것이기 때문에 대상그룹의 대상유형은 ip로 설정한다







ECS 생성



ECS를 생성 해준다



ECS를 생성할 때 서비스를 blue/green배포방식을 선택하려면 AWSCodeDeployRoleForECS 정책이 연결 된 codedeploy 역할이 필요하다

역할의 사용서비스는 CodeDeploy - ECS로 한다



ECS CodePipeline 구성



appspec.yaml 작성

version: 0.0
Resources:
  - TargetService:
      Type: AWS::ECS::Service
      Properties:
        TaskDefinition: #"작업정의 arn"
        LoadBalancerInfo:
          ContainerName: "stress"
          ContainerPort: 8080



buildspec.yaml 작성

version: 0.2

phases:
  install:
    runtime-versions:
      java: corretto11
  pre_build:
    commands: #ecr 로그인 하는 명령어
      - echo Logging in to Amazon ECR...
      - aws ecr get-login-password --region ap-northeast-2 | docker login --username AWS --password-stdin 702661606257.dkr.ecr.ap-northeast-2.amazonaws.com
  build:
    commands:
      - echo Build started on `date`
      - echo Building the Docker image...
      - docker build -t htmlspring . #ecr image build 명령어
      - docker tag htmlspring:latest 702661606257.dkr.ecr.ap-northeast-2.amazonaws.com/htmlspring:latest #ecr image 태그변경 명령어
  post_build:
    commands:
      - echo Build completed on `date`
      - echo Pushing the Docker image to Amazon ECR...
      - curl https://github.com/ggomchang  #지림
      - docker push 702661606257.dkr.ecr.ap-northeast-2.amazonaws.com/htmlspring:latest #ecr push하는 명령어
artifacts:
  files:
    - appspec.yaml
    - taskdef.json



taskdef.json 작성(ECS 작업정의 만들고 그냥 json보기로 복붙하면 됨)

{
    "taskDefinitionArn": "arn:aws:ecs:ap-northeast-2:702661606257:task-definition/htmlspring:2",
    "containerDefinitions": [
        {
            "name": "asd",
            "image": "702661606257.dkr.ecr.ap-northeast-2.amazonaws.com/htmlspring:latest",
            "cpu": 0,
            "portMappings": [
                {
                    "name": "asd-8080-tcp",
                    "containerPort": 8080,
                    "hostPort": 8080,
                    "protocol": "tcp",
                    "appProtocol": "http"
                }
            ],
            "essential": true,
            "environment": [],
            "environmentFiles": [],
            "mountPoints": [],
            "volumesFrom": [],
            "ulimits": [],
            "logConfiguration": {
                "logDriver": "awslogs",
                "options": {
                    "awslogs-create-group": "true",
                    "awslogs-group": "/ecs/htmlspring",
                    "awslogs-region": "ap-northeast-2",
                    "awslogs-stream-prefix": "ecs"
                },
                "secretOptions": []
            },
            "systemControls": []
        }
    ],
    "family": "htmlspring",
    "taskRoleArn": "arn:aws:iam::702661606257:role/ecsTaskExecutionRole",
    "executionRoleArn": "arn:aws:iam::702661606257:role/ecsTaskExecutionRole",
    "networkMode": "awsvpc",
    "revision": 2,
    "volumes": [],
    "status": "ACTIVE",
    "requiresAttributes": [
        {
            "name": "com.amazonaws.ecs.capability.logging-driver.awslogs"
        },
        {
            "name": "ecs.capability.execution-role-awslogs"
        },
        {
            "name": "com.amazonaws.ecs.capability.ecr-auth"
        },
        {
            "name": "com.amazonaws.ecs.capability.docker-remote-api.1.19"
        },
        {
            "name": "com.amazonaws.ecs.capability.task-iam-role"
        },
        {
            "name": "ecs.capability.execution-role-ecr-pull"
        },
        {
            "name": "com.amazonaws.ecs.capability.docker-remote-api.1.18"
        },
        {
            "name": "ecs.capability.task-eni"
        },
        {
            "name": "com.amazonaws.ecs.capability.docker-remote-api.1.29"
        }
    ],
    "placementConstraints": [],
    "compatibilities": [
        "EC2",
        "FARGATE"
    ],
    "requiresCompatibilities": [
        "FARGATE"
    ],
    "cpu": "512",
    "memory": "1024",
    "runtimePlatform": {
        "cpuArchitecture": "X86_64",
        "operatingSystemFamily": "LINUX"
    },
    "registeredAt": "2024-03-30T10:27:29.675Z",
    "registeredBy": "arn:aws:iam::702661606257:root",
    "tags": []
}



git push를 하기 전에 이거를 해주면 자격증명을 입력을 안해도 된다

git config --global credential.helper '!aws codecommit credential-helper $@'
git config --global credential.UseHttpPath true



CodeCommit

-새로운 사용자 만들어서 codecommit 자격증명 생성하기

-codecommitadmin 이나 codecommitpoweruser 권한을 준다

-자격증명 생성 후 저장을 잘 해야 한다





CodeBuild

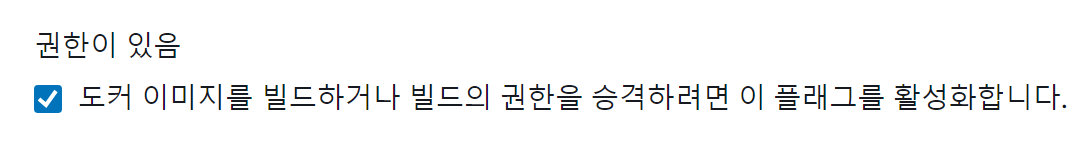

-이거를 켜줘야 Dockerfile을 build함

-그리고 만들고 난 뒤에 역할에다가 정책을 추가해줘야 함

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "ecr:GetAuthorizationToken",
                "ecr:InitiateLayerUpload",
                "ecr:UploadLayerPart",
                "ecr:CompleteLayerUpload",
                "ecr:BatchCheckLayerAvailability",
                "ecr:PutImage"
            ],
            "Resource": "*"
        }
    ]
}





CodeDeploy



blue/green배포방식으로 만들어준다



만약 롤링 배포방식이면

imagedefinitions.json 작성하고 buildspec.yaml의 artifacts에도 추가해줘야 한다

[
  {
    "name": "asd",
    "imageUri": "702661606257.dkr.ecr.ap-northeast-2.amazonaws.com/htmlspring:latest"
  }
]







CodePipeline

codepipeline을 생성해준다
